SDS VDI 2U rack 2288H V7 Huawei FusionServer OEM

Name: SDS VDI 2U rack 2288H V7 Huawei FusionServer OEM
Brand: Huawei
Price: 1 USD

Wholesale SDS VDI 2U rack 2288H V7 Huawei FusionServer OEM from china suppliers

Description : 2288H V7

Stock : In Stock

MOQ : 1 pieces

Price : Determine based on market prices

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Brand Name : Huawei

Model Number : 2288H V7

Place of Origin : Beijing China

Supply Ability : /pieces >=2 pieces

Delivery Time : 2-7 working days

Packaging Details : Original packaging box+Based on customer needs

Model : FusionServer 2288H V7

Form Factor : 2U rack server

Processors : 1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor

Memory : 32 x 5600 MT/s DDR5 DIMMs and 16 x DDR5 or DDR4 DIMMs supported by the CXL technology; up to 48 x DIMMs*

Chipset : Emmitsburg PCH

Dimensions (H x W x D) : Chassis with 3.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) Chassis with 2.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)

Contact Now

New-Generation 2U 2-Socket Rack Server

Main application scenarios

SDS

VDI

CDN

Virtualization

Big data

Database

Cloud scenarios

AI inference

Small businesses

Web application

• FusionServer 2288H V7 (2288H V7) is a new-generation 2U 2-socket rack server designed for SDS, VDI, CDN, virtualization, big data, database, cloud scenarios, AI inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads.

• The 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

SDS VDI 2U rack 2288H V7 Huawei FusionServer OEM

FusionServer 2288H V7
Local Storage	Hot-swappable drives with the following configuration options are supported: • 8 to 35 x 2.5ʺ SAS/SATA/SSD drives • 12 to 18 x 3.5ʺ SAS/SATA drives • 4/8/16/24 x NVMe SSDs • Up to 45 x 2.5ʺ drives, or 28 x full NVMe SSDs* • 2 x M.2 SSDs, hardware RAID, and hot swap
RAID Support	RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network	Expansion capability of multiple types of networks OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported
PCIe Expansion	Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots*, 8 slots of which support PCIe 5.0
Power Supply	900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
Operating Temperature	5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4
Installation Kit	L-shaped guide rails, adjustable guide rails, and holding rails
Management	The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle

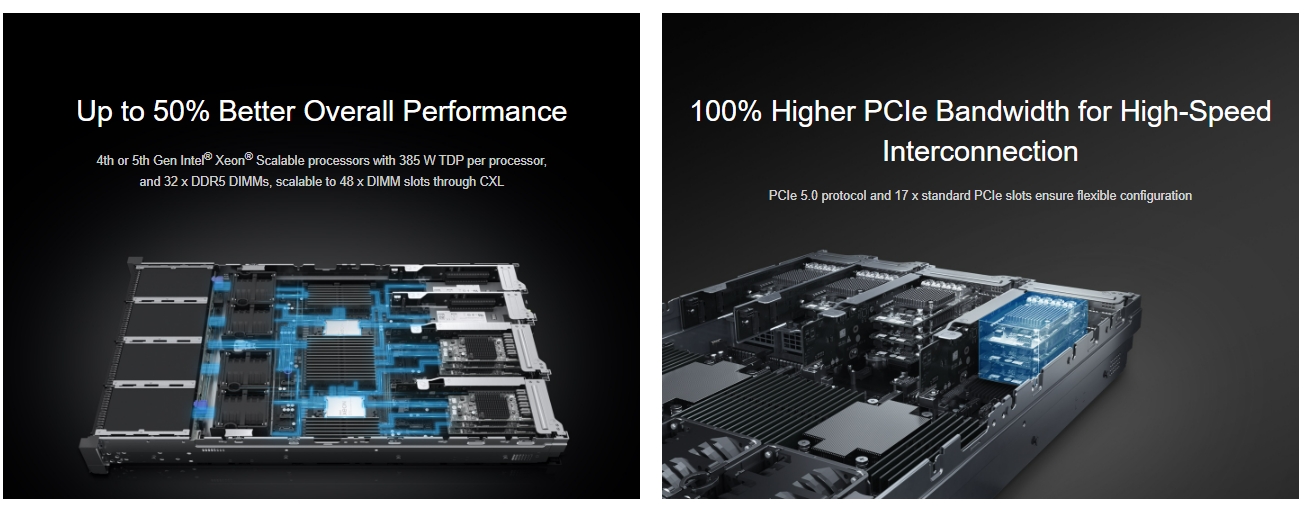

Robust Performance

SDS VDI 2U rack 2288H V7 Huawei FusionServer OEM

High Reliability and Security

SDS VDI 2U rack 2288H V7 Huawei FusionServer OEM

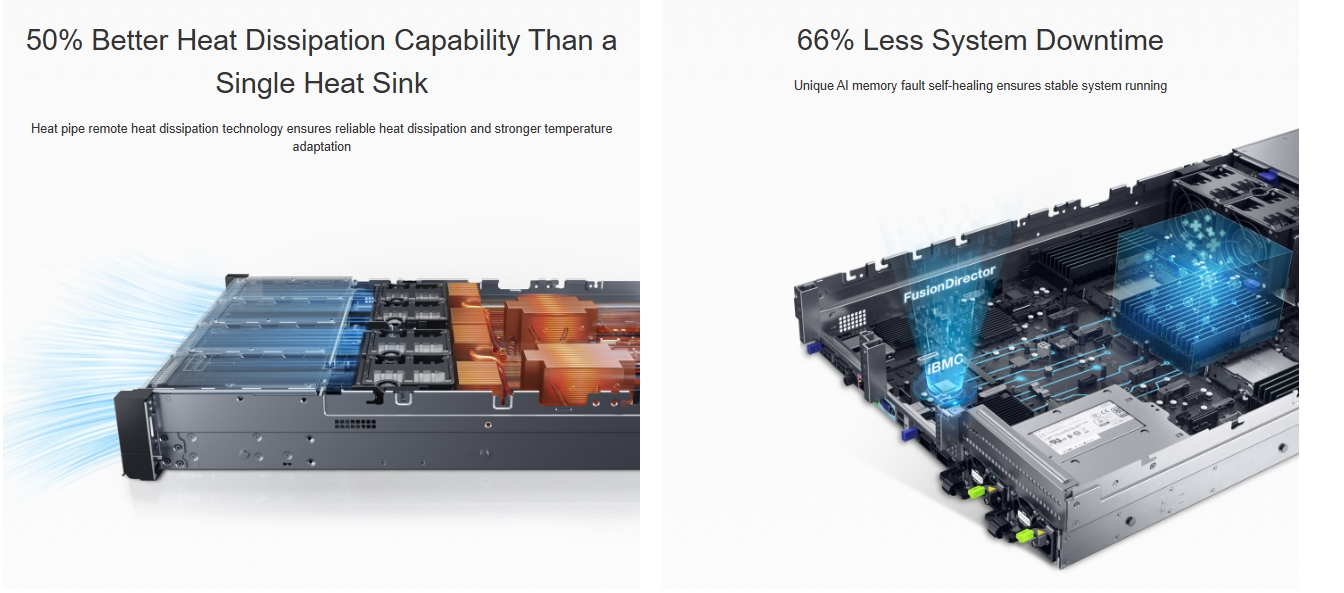

Efficient Energy Saving

Saving Energy by up to 8% Compared with the Industry Average
The unique algorithm is provided for the lowest power consumption of fans and CPUs

Intelligent Service Awareness, Dynamic Load Adjustment
The CPU working frequency is dynamically adjusted based on the actual service load

Industry-leading Power Supply Technology for Higher Efficiency
Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average

SDS VDI 2U rack 2288H V7 Huawei FusionServer OEM
