PowerEdge R660xs
The new Dell PowerEdge R660xs is a 1U, two-socket rack server. Buy the best fit in dense performance with this purpose-built 1U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtualization, scale out-database and high performance compute.
All delivered in a thoughtfully crafted platform that will provide dense compute that fits in your current infrastructure.
The dual socket, 1U Dell PowerEdge R660xs server offers several storage options including up to 4x 3.5” SAS/SATA HDD/SSD bays or up to 10x 2.5” SAS/SATA/NVMe HDD/SSD bays. On the rear, there are 2x 2.5” SAS/SATA/NVMe HDD/SSD drive bays for more storage or to boot the operating system. All of these components are supported by dual 5th generation Intel Xeon Scalable processors with up to 64 cores per socket. The system is powered by dual hot-swappable, redundant power supplies.
Best choice in balanced and dense compute for the most popular IT applications.
Easily configurable
• Add up to two 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
• Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
• Improve data throughput and reduce latency with support up to 5 I/O devices (up to 3 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot)
• Storage options include up to 4x 3.5” HDDs/SSDs; or up to 10x 2.5” HDDs/SSDs/NVMe.
A breeze to cool
• Thoughtfully designed to fit in your current air-cooled infrastructure
• Alleviate the worry about expensive liquid cooling retrofitting to your data center
• Sychronize your workload needs with a tailored performance configuration that is air-cooled
• Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirement.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations. Increase efficiency and accelerate operations with autonomous collaboration The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
| R660XS | Technical Specification |
| Processor | Up to two 5th Generation Intel Xeon Scalable processor with up to 28 cores and 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor |
| Memory | 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s, Supports registered ECC DDR5 DIMMs only |
| Storage controllers | • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) or USB • External HBA (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays | Front bays: • 0 drive bay • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 96 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB | Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB |
| Fans | Standard (STD) fans / High performance Gold (VHP) fans, Up to 7 hot swappable fans |
| Dimensions and Weight | •Height – 42.8 mm (1.68 inches) • Depth – 748.79 mm (29.85 inches) with bezel 712.95 mm (28.05 inches) without beze • Width – 482 mm (18.97 inches) • Weight – 19.45 Kg (55.33 pound) |
| Form Factor | 1U rack server |
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
| Ports | Front Ports • 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA Internal Ports • 1 x USB 3.0 (optional) | Rear Ports • 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional) |
| PCIe | • 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5) • 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5) |
System overview
The Dell PowerEdge R660xs is Dell's latest 2-socket, 1U rack server designed to run the most popular workloads using highly scalable memory, I/O, and network options. The systems feature the 4th and 5th Generation Intel® Xeon Scalable Processor (Socket E1/LGA4677-1), up to 16 DIMMs, PCI Express® (PCIe) 5.0 enabled expansion slots, and a broad selection of network.
Chassis views and features
Front view of the system

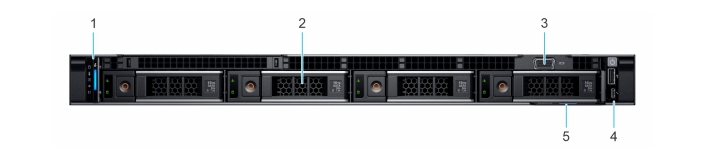

Figure 1. Front view of 4 x 3.5-inch drive system
Figure 2. Front view of 8 x 2.5-inch drive system

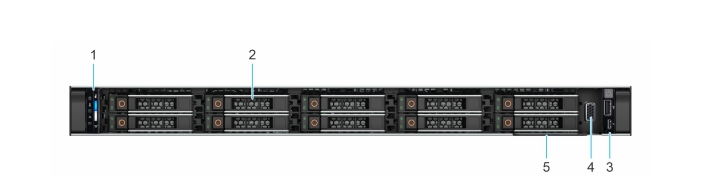

Figure 3. Front view of 10 x 2.5-inch drive system

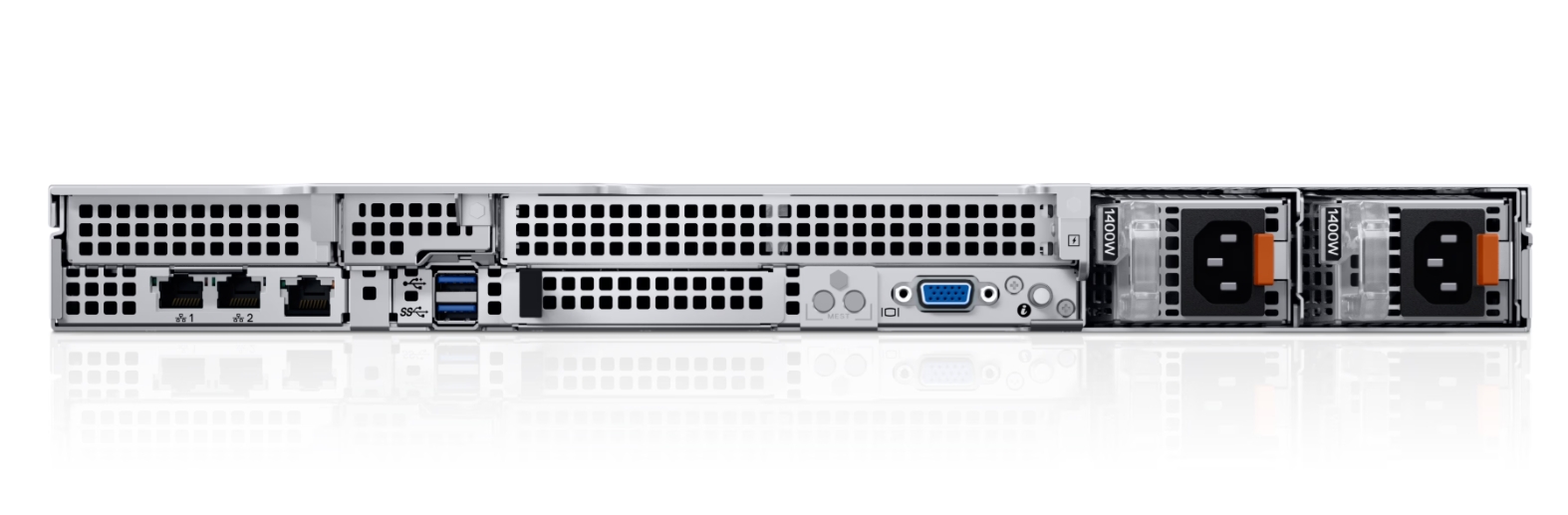

Figure 4. Rear view of the system
Inside the system
Figure 5. Inside the system
1. Fan
2. Intrusion switch
3. Memory module slots
4. Riser 2
5. PSU 1 and PSU 2
6. Riser 1
7. BOSS riser
8. Heat sink
9. Drive backplane
10. Front PERC
11. Express service tag
